AWS Service - Elastic Compute Cloud(EC2)

EC2:

Create EC2 instance( Windows & Linux):


create EC2:

search ec2 service -> launch instance -> choose amazon linux (freetier) -> choose t2 micro -> leave the configure instance default -> leave the default storage option -> tags give name like (Name Linux-server) -> create new security group and add the ports (ssh/http/all-icmp) -> create a new key pair for the login password

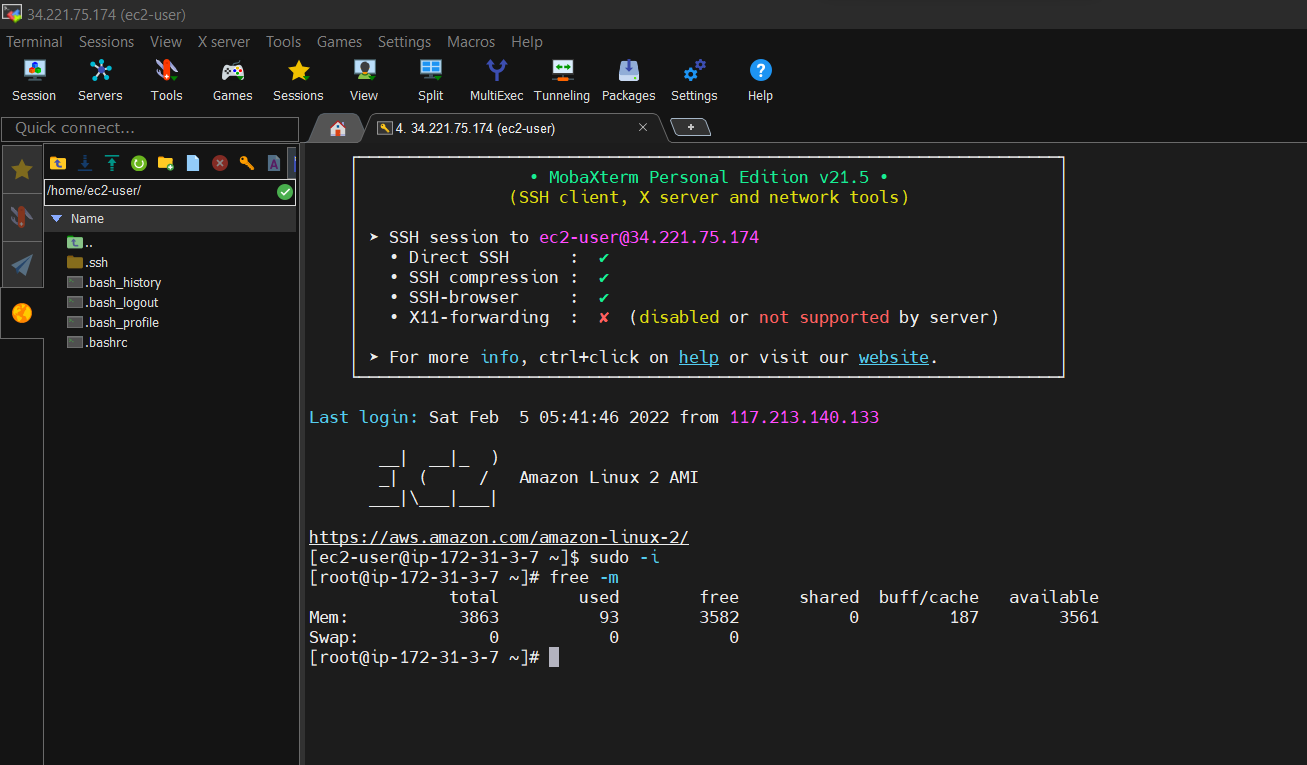

Linux Machine:

To connect the EC2 - we need either putty or MobaXterm

open MobaXterm - > session -> ssh -> public ip -> username = ec2-user -> advanced settings (use private key and choose the key we downloaded)




Windows machine:

login using username = Administrator (use get password feature in instance connect to upload your .pem key and generate the password)

search rdp and give public ip and user name "Administrator" and give the generated password



Linux website:

– Create a website in Linux server :

  1. yum install httpd ( host a website)

  2. cd /var/www/html

  3. vi index.html

(ESC i - type your content

ESC:wq! - to save the content  and force-quit )

  1. systemctl restart httpd

  2. systemctl enable httpd (permanent service enable)

            to delete a line

  1. ESC dd

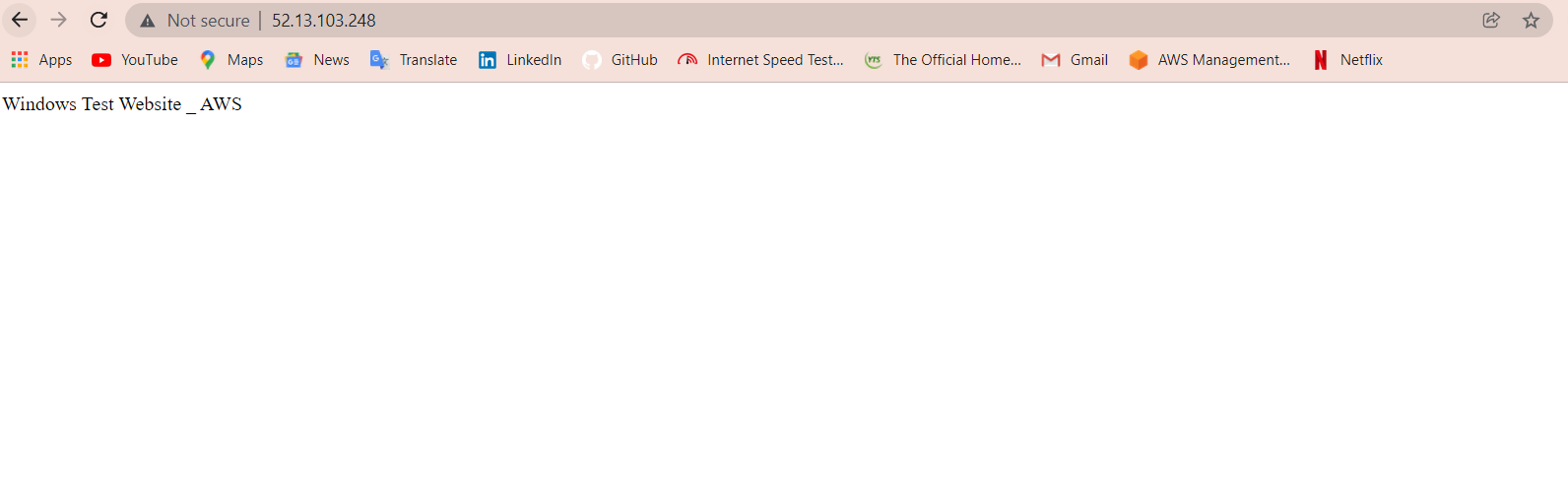

Windows Website:

after login - search for "server manager" add roles and features select webserver(IIS) Internet Information Service

go to website default path = c:inetpub/wwwroot
edit the default website

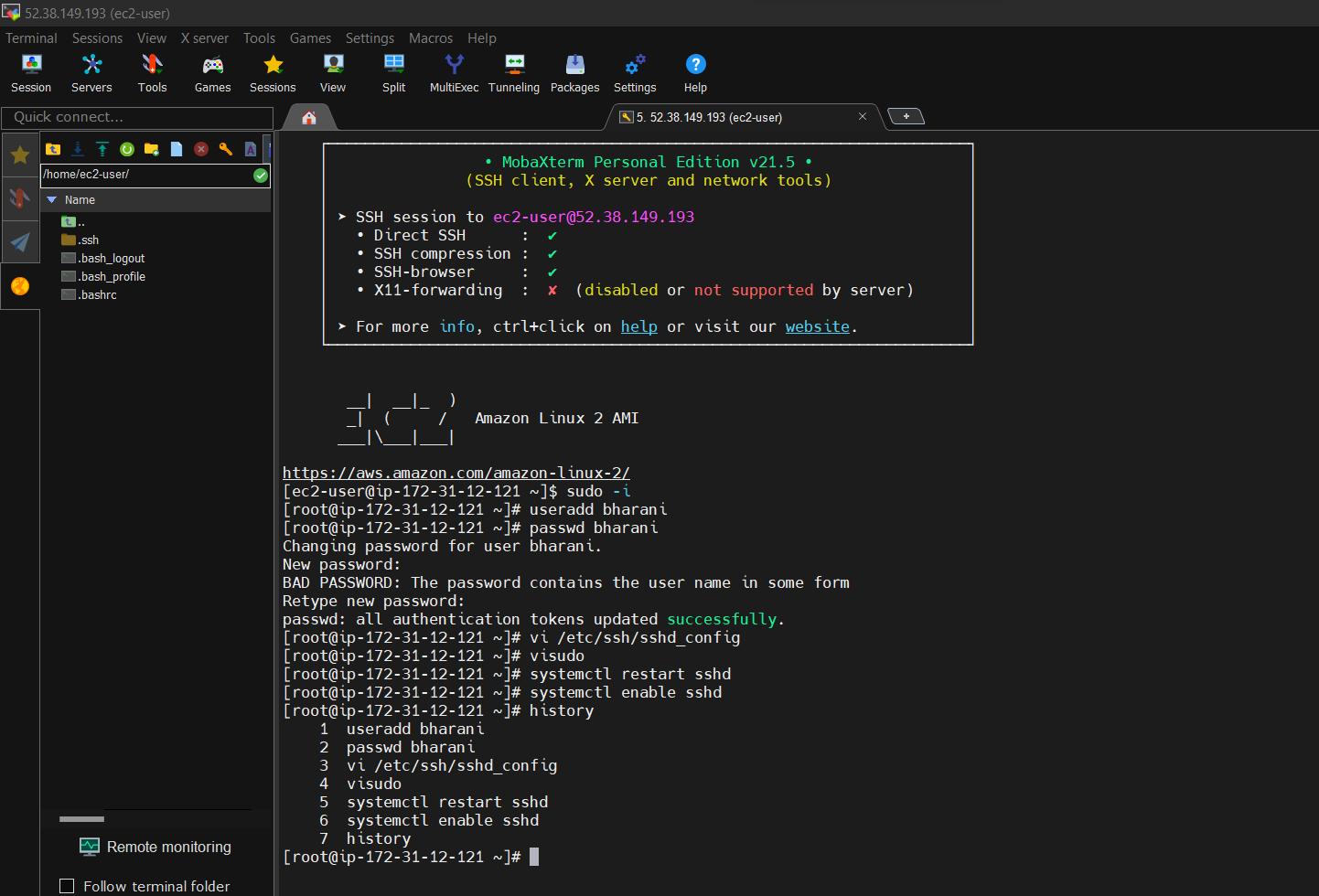

User ADD:

useradd pravin
passwd pravin

vi /etc/ssh/sshd_config
  PasswordAuthentication yes

systemctl restart sshd
visudo
esc /root - search the word root
esc yy - to copy the line
esc p - to paste it in next line and edit it to change the root to pravin (example below)
 root ALL=(ALL)   ALL
 pravin ALL=(ALL) ALL



Sign in by new user:



Types of Instance:

  • On-demand instance -

                        Depending on our need, whenever if we build an EC2 instance is called on

                        demand  (1000 rs - rough calculation)



  • reserved instance

                       we can purchase an instance for a specific period of time  (30 % discount - 700 rs)


  • Spot instance

                       70 % - 300rs - 12 hours auto terminate


  • Scheduled instance

scheduling an instance build for a certain time


  • Dedicated host

Dedicated HW for end-user

Types of EC2 instance (resource)  refer :

https://aws.amazon.com/ec2/instance-types/

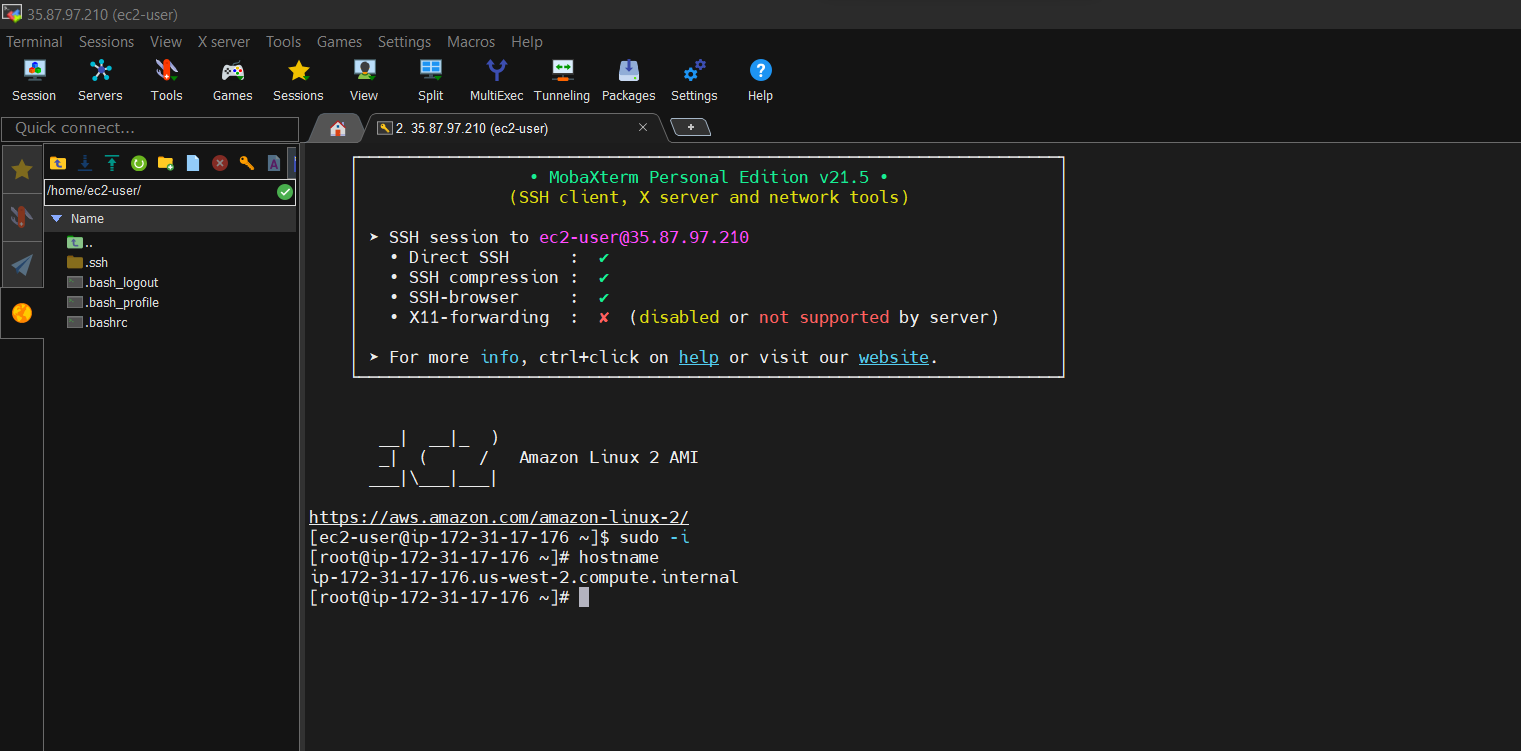

Changing RAM & Storage in Linux Server:

instance right click -> instance-settings -> change instance type

– Before Changing:



– After Changing:
